A real bike for racing.

The EVO-C DISK is made to give the best performances to the pilot during a race. This is the "Ready to go" for Racing of the brand. Meant to perform with his carbon fork already mounted. This allow the pilot to improve himself and reach more riding technics

Reactiv feelings and efficient on the track.

We decided an Aluminium Premium 6061-T6 for the frame. This achievement include the "Reactive Geometry" technology. His specific design gives a great stiffness and confort following the needs. Hydroformed tubes for a better power balance but also absorbing every little vibration on the track. We placed a Swell system that gives more stiffness at the back of the frame even tho compatible with disc brakes mounts. This frame resumes a balanced, fast and efficient riding.

High brand components.

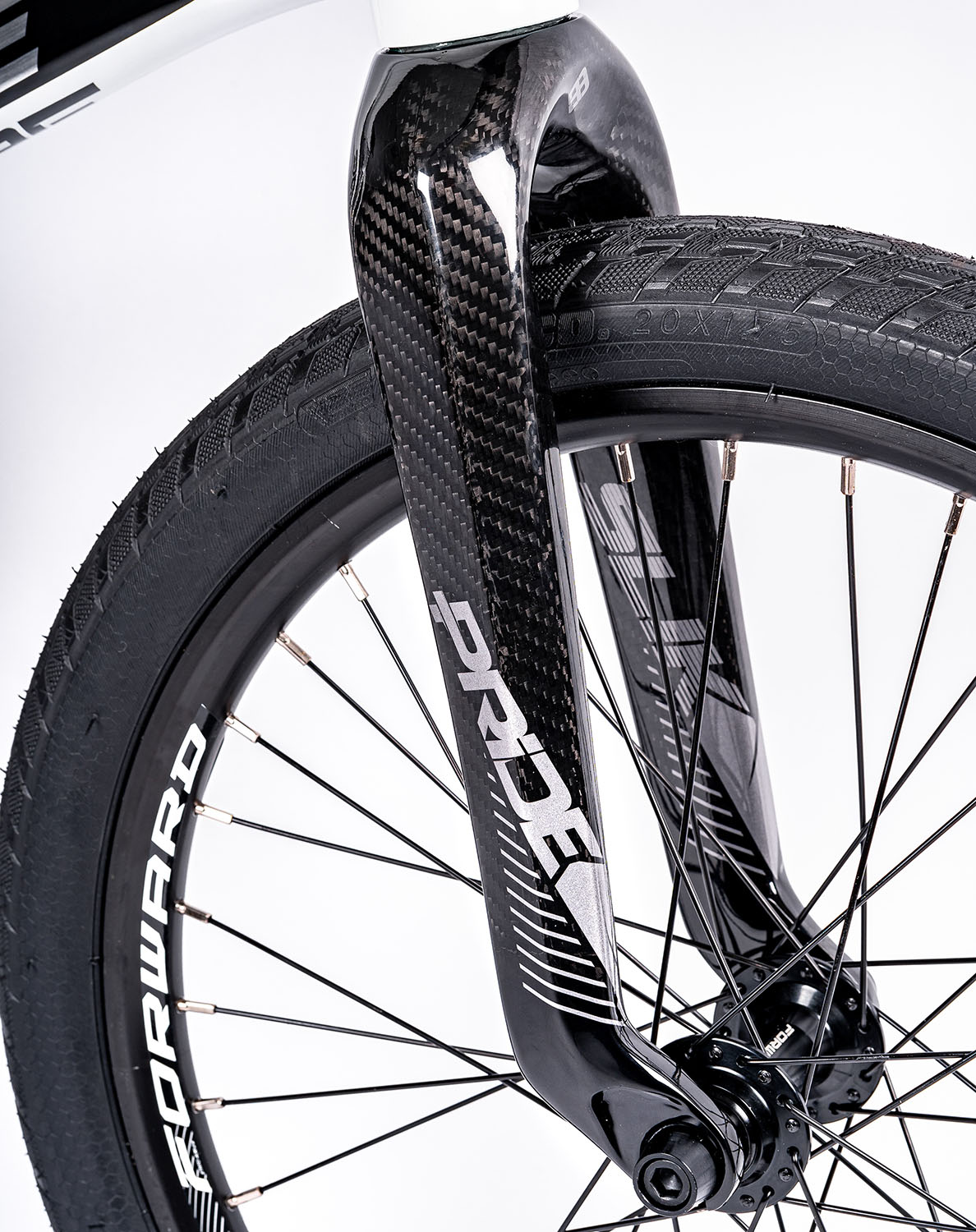

EVO-C DISK has been made like a custom built bike. Every single parts are sold as aftermarket and high brand components. We could find the famous PRIDE RACING® SLIK carbon fork which the best option if you want precision and reactivity in your riding. There's also many FORWARD® parts that's been tested and approved by the Inspyre Bicycles Team. Very high technology on hubs with the JOYRIDE V2 by FORWARD® with 6 panels and pawls - 150 engagement points. Truely reactive wheels with goods speedbooster tires as VEE TIRE® can make the diffrence. On this 2023 version we decided to have a SHIMANO® MT-200 on disc brakes.

BMX INSPYRE EVO-C DISK JUNIOR 2022

VEIN2330
€999.96
Size-TopTube

The EVO-C Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features and sold with a Pride Racing Carbon Fork Slik 2.0 ! The braking system has been upgraded. The EVO-C Disk range is now equipped with a Forward brake, offering high-end braking. The Forward rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

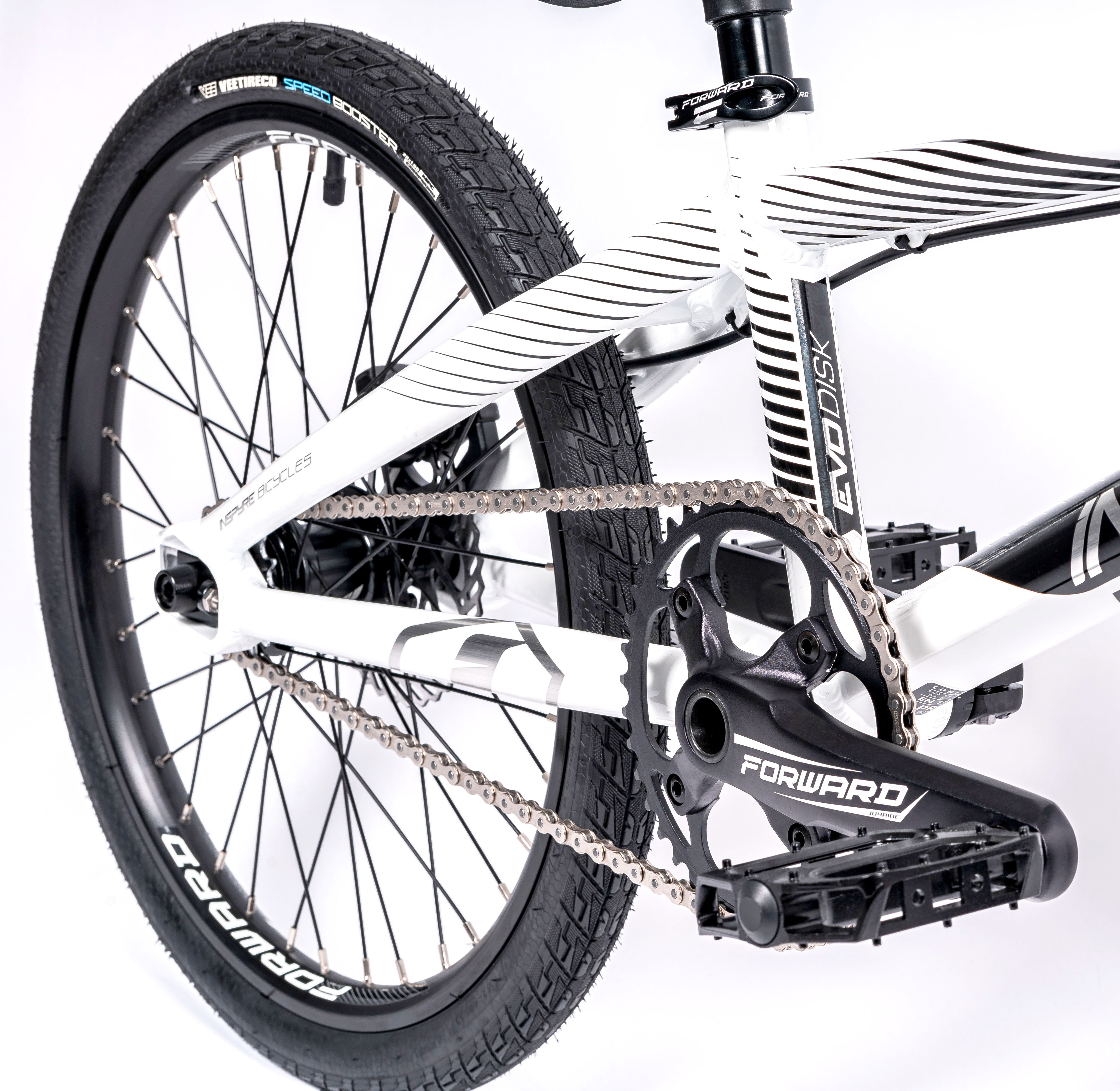

  • 6061-T6 Aluminum frame - Hydroformed Tubes
  • Closed SWELL dropouts with tensioners
  • Tapered head tube from Expert XL
  • Forward Joyride AM 2 pieces external BB crankset
  • Forward Joyride V2 rear hub 6 pawls 150 engagement points
  • Shimano MT200 brake
  • Vee Speedbooster tires


SPECS :

BMX INSPYRE EVO-C DISK JUNIOR 2023
€1,199.95
BMX INSPYRE EVO-C DISK EXPERT 2023
€1,199.95
BMX INSPYRE EVO-C DISK EXPERT XL 2023
€1,199.95
BMX INSPYRE EVO-C DISK PRO 2023
€1,199.95
BMX INSPYRE EVO-C DISK PRO XL 2023
€1,199.95
BMX INSPYRE EVO-C DISK PRO XXL 2023
€1,199.95
BMX INSPYRE EVO-C DISK CRUISER 2023
€1,199.95
FRAME Inspyre Evo-C Disk Junior - 18.75’’ Premium Alu 6061-T6 Inspyre Evo-C Disk Junior - 19,5’’ Premium Alu 6061-T6 Inspyre Evo-C Disk Expert - 20’’ Premium Alu 6061-T6 Inspyre Evo-c Disk Pro - 20,75’’ Premium Alu 6061-T6 Inspyre Evo Disk Pro XL - 21.25’’ Premium Alu 6061-T6 Inspyre Evo-C Disk Pro XL - 21.85’’ Premium Alu 6061-T6 Inspyre Evo-C Disk Cruiser 24" - 21.85’’ Premium Alu 6061-T6
CHAIN KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’
SPROCKET Aluminium 4 bolts 38T - BCD 110mm Aluminium 4 points 40T - BCD 110mm Aluminium 4 bolts 41T - BCD 110mm Aluminium 4 points 42T - BCD 110mm Aluminium 4 points 43T - BCD 110mm Aluminium 4 points 44T - BCD 110mm Aluminium 4 points 41T - BCD 110mm
SEAT POST CLAMP SIZE Forward AM 25.4mm Forward AM 31,8mm Forward AM 31,8mm 25.4mm Forward AM 31,8mm 31.8mm Forward AM 31,8mm
DISC Forward Joyride AM 140mm Forward Joyride AM 140mm Forward Joyride AM 140mm Forward Joyride AM 140mm Forward Joyride AM 140mm Forward Joyride AM 140mm Forward Joyride AM 140mm
BRAKE CALIPER SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200
FORK Pride Apex Carbon - Alloy fork steerer - 1-1/8’' - 10mm & Inspyre Bicycles CrMo - 1-1/8’' Steerer tube - 10mm ride Apex Carbon - Alloy fork steerer - 1-1/8’' - 10mm & Inspyre Bicycles CrMo - 1-1/8’' Steerer tube - 10mm Pride Slik 2.0 Carbon Torray® T700S x Torray® T800S  - 1-1/8’' | 1.5" Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' | 1.5" Steerer tube - 10mm Pride Slik 2.0 Carbon Torray® T700S x Torray® T800S - 1-1/8’' | 1.5" Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' | 1.5" Steerer tube - 10mm PPride Slik 2.0 Carbon Torray® T700S x Torray® T800S - 1-1/8’' | 1.5" Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' | 1.5" Steerer tube - 10mm Pride Slik 2.0 Carbon Torray® T700S x Torray® T800S  - 1-1/8’' | 1.5" Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' | 1.5" Steerer tube - 10mm Pride Slik 2.0 Carbon Torray® T700S x Torray® T800S - 1-1/8’' | 1.5" Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' | 1.5" Steerer tube - 10mm
HANDLEBAR Inspyre Evo - Chromoly 4.25’’ x 22’’ - BackSweep : 7° / UpSweep : 2° Inspyre Evo - Aluminium 5,5’’ x 26’’ - BackSweep : 7° / UpSweep : 2° Inspyre Evo - CrMo 6,5’’ x 26’’ - BackSweep : 7° / Upsweep : 2° Inspyre Evo - CrMo 7,5’’ x 26.7’’ - BackSweep : 7° / UpSweep : 1.5° Inspyre Evo - CrMo 8’’ x 28.5’’ - BackSweep : 7° / UpSweep : 1.5° Inspyre Evo - CrMo 8’’ x 28.5’’ - BackSweep : 7° / UpSweep : 1.5° Inspyre Evo - CrMo 5.5’’ x 27.5’’ - Backsweep : 7° / Upsweep : 1.5°
REAR RIM Forward Joyride Aero - Aluminium 28H - Double walls Forward Joyride Aero - Aluminium 28H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero 24" - Aluminium 36H - Double walls
FRONT RIM Forward Joyride Aero - Aluminium 28H - Double walls Forward Joyride Aero - Aluminium 28H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero 24" - Aluminium 36H - Double walls
HEADSET Semi Integrated - Sealed bearings - ZS44 | ZS44 Semi Integrated - Sealed bearings - ZS44 | ZS44 Tapered Integrated - Sealed bearings - IS42.2 | IS52.2 Tapered Integrated - Sealed bearings - IS42.2 | IS52.2 Tapered Integrated - Sealed bearings - IS42.2 | IS52.2 Tapered Integrated - Sealed bearings - IS42.2 | IS52.2 Tapered Integrated - Sealed bearings - IS42.2 | IS52.2
BRAKE LEVIER SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200 SHIMANO MT200
REAR HUB Forward Joyride Disc - Body aluminium Cassette 28H - 10mm Forward Joyride Disc - Body aluminium Cassette 28H - 10mm Forward Joyride Disc - Body aluminium Cassette 36H - 10mm Forward Joyride Disc - Body aluminium Cassette 36H - 10mm Forward Joyride Disc - Body aluminium Cassette 36H - 10mm Forward Joyride Disc - Body aluminium Cassette 36H - 10mm Forward Joyride Disc - Body aluminium Cassette 36H - 10mm
FRONT HUB Forward Joyride - Body aluminium 28H - 10mm Forward Joyride - Body aluminium 28H - 10mm Forward Joyride - Body aluminium 36H - 10mm Forward Joyride - Body aluminium 36H - 10mm Forward Joyride - Body aluminium 36H - 10mm Forward Joyride - Body aluminium 36H - 10mm Forward Joyride - Body aluminium 36H - 10mm
PEDALS Alu Mini 9/16 Alu 9/16 Alu 9/16 Alu 9/16 Alu 9/16 Alu 9/16 Alu 9/16
CRANKS Forward Joyride AM 2 pieces - 4 Points - 150mm Forward Joyride AM 2 pieces - 4 Points - 160mm Forward Joyride AM 2 pieces - 4 Points - 170mm Forward Joyride AM 2 pieces - 4 Points - 175mm Forward Joyride AM 2 pieces - 4 Points - 175mm Forward Joyride AM 2 pieces - 4 Points - 180mm Forward Joyride AM 2 pieces - 4 Points - 175mm
COG
16T CrMo - 1/2’’ x 3/32’’
CrMo 16T - 1/2’’ x 3/32’’ 16T - 1/2’’ x 3/32’’ 16T CrMo - 1/2’’ x 3/32’’ 16T - 1/2’’ x 3/32’’ 16T CrMo 16T - 1/2’’ x 3/32’’
TIRES Vee Tire Speedbooster 20’’x1-3/8 (FR) / Vee Tire Speedbooster 20’’x1-1/8 (BK) Vee Tire Speedbooster 20’’x1-3/8 Vee Tire Speedbooster 20’’x1.40" Vee Tire Speedbooster 20’’x1.75" (rear) / Vee Tire Speedbooster 20’’x1.60" (front) Vee Tire Speedbooster 20’’x1.75" Vee Tire Speedbooster 20’’x1.75" Vee Tire® Speedbooster 24’’x1.75" (AV) / Vee Tire® Speedbooster 24’’x1.60" (AR)
GRIPS Forward Lock On 95mm - Krayton Forward Lock On 130mm - Krayton Forward Lock On 130mm - Krayton Forward Lock On 130mm - Krayton Forward Lock On 130mm - Krayton Forward Lock On 130mm - Krayton Forward Lock On 130mm - Krayton
STEM Forward - Top Load - Aluminium 6061-T6 - 40mm Forward - Top Load - Aluminium 6061-T6 - 40mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm
SPOKES Stainless 14G Stainless 14G Stainless 14G Stainless 14G Stainless 14G Stainless 14G Stainless 14G
SEAT Combo 22.2mm Combo 27.2mm Combo 27.2mm Combo 27.2mm Combo 27.2mm Combo 27.2mm Combo 27.2mm
CHAIN TENSIONER Swell Integrated Swell intégré Swell Integrated Swell Integrated Swell Integrated Swell Integrated Swell Integrated
TOP TUBE 18.75" 20" 20.75" 21.25" 21.85" 21.85"
NIPPLES Brass 14G Brass 14G Brass 14G Brass 14G Brass 14G Brass 14G Brass 14G
BOTTOM BRACKET External BSA - EB24 ring bearings Boîtier de pédalier externe BSA - Roulements annulaires EB24 External BSA - EB24 ring bearings External BSA - EB24 ring bearings External BSA - EB24 ring bearings External BSA - EB24 ring bearings External BSA - EB24 ring bearings
RIDE LEVEL experimented
Expert
Expert
experimented
Expert
experimented
Expert
experimented
Expert
experimented
Expert
experimented
Expert
experimented
RIDER SIZE 1m35 : 1m45 1m40 : 1m55 1m40 : 1m55
1m45 : 1m55
1m50 : 1m65 1m50 : 1m65
1m50 : 1m70
1m80 <
1m70 : 1m80
1m80 <
1m70 : 1m80
BIKE SIZE Junior Expert Expert XL Pro Pro XL Pro XXL Cruiser Pro

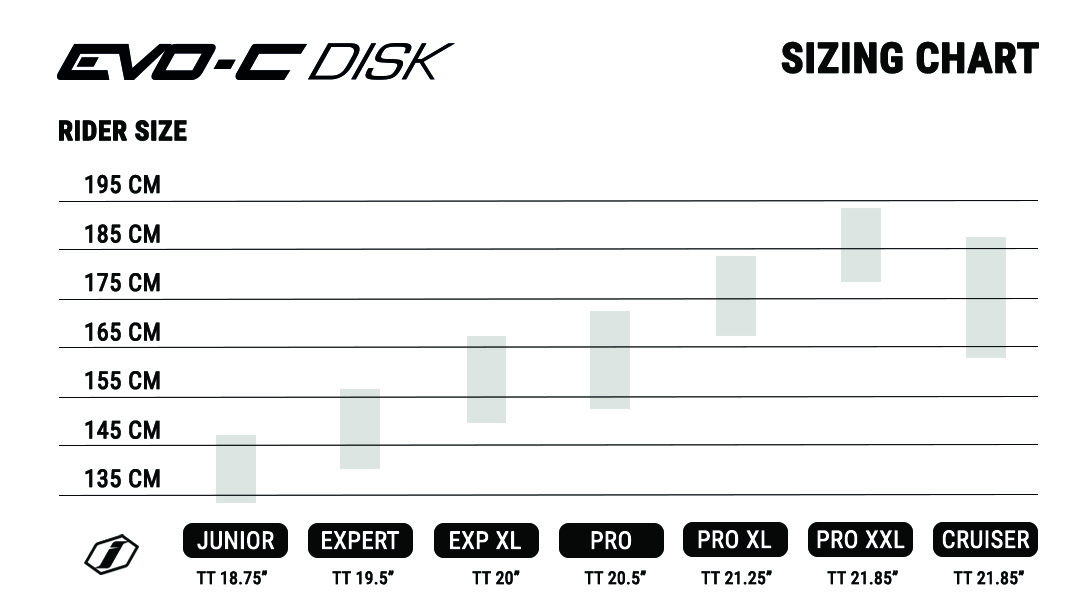

SIZING CHART EVO-C EN V2.jpg
