Ready for Racing.

EVO DISK is meant to be on your side during the race. This model is the "ready to go" of the Inspyre Bicycles®. It gives everything to improve and perform in all riding technics

Fast & Efficient on track.

We decided an Aluminium Premium 6061-T6 for the frame. This achievement include the "Reactive Geometry" technology. His specific design gives a great stiffness and confort following the needs. Hydroformed tubes for a better power balance but also absorbing every little vibration on the track. We placed a Swell system that gives more stiffness at the back of the frame even tho compatible with disc brakes mounts. This frame resumes a balanced, fast and efficient riding.

High end components.

EVO-C DISK has been made like a custom built bike. Every single parts are sold as aftermarket and high brand components. There's also many FORWARD® parts that's been tested and approved by the Inspyre Bicycles Team. Very high technology on hubs with the JOYRIDE V2 by FORWARD® with 6 panels and pawls - 150 engagement points. Truely reactive wheels with goods speedbooster tires as VEE TIRE® can make the diffrence. On this 2023 version we decided to have a SHIMANO® MT-200 on disc brakes.

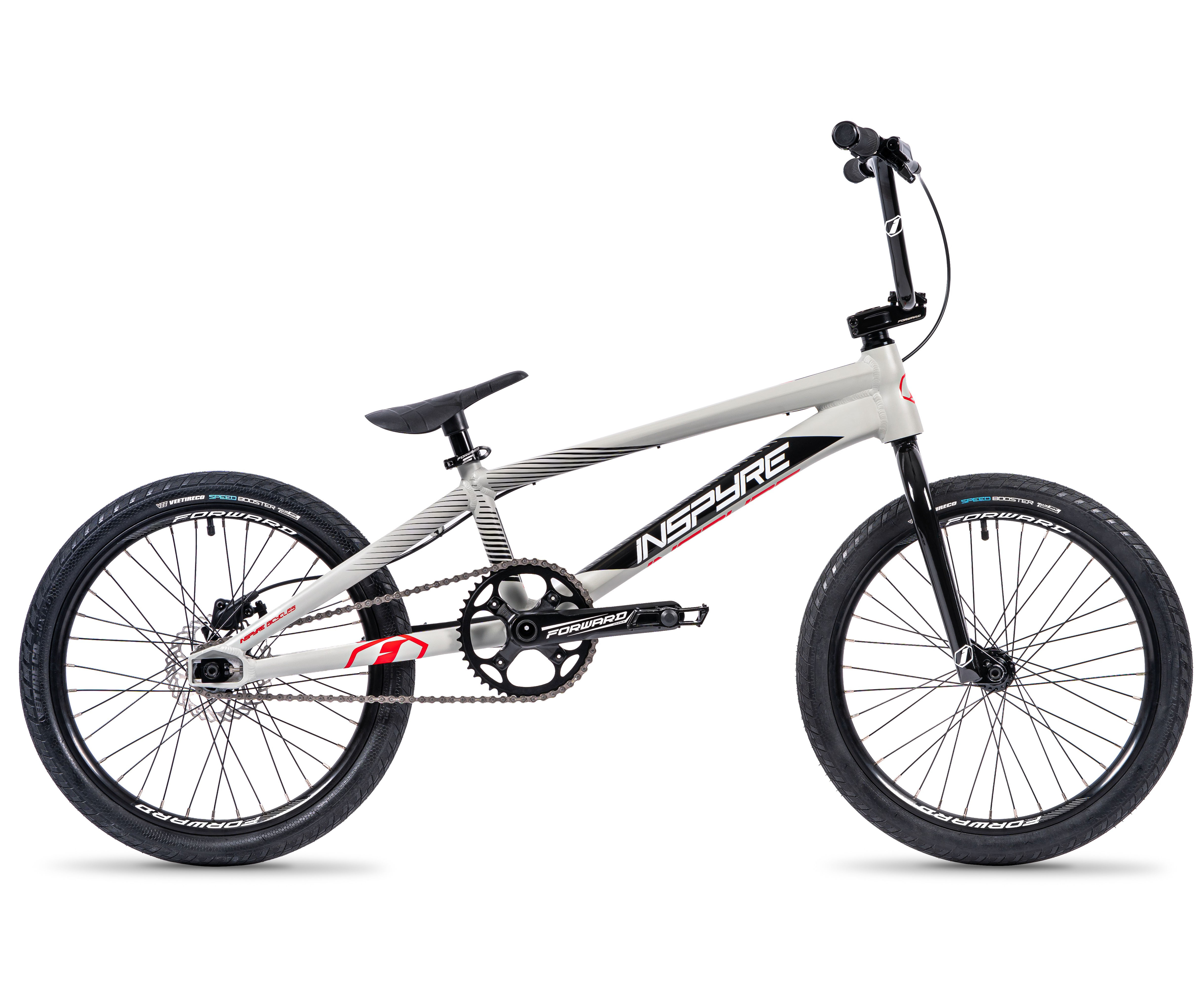

BMX INSPYRE EVO DISK 2023

Reference VEIN2320

There are not enough products in stock

€666.63

Description
Product Details

The EVO Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features !

The braking system has been upgraded. The EVO Disk range is now equipped with a Forward brake, offering high-end braking.

The Forward rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

6061-T6 Aluminum frame - Hydroformed Tubes
Closed SWELL dropouts with tensioners
Tapered head tube from Expert XL
Forward Joyride AM 2 pieces external BB crankset
Forward hub 6 pawls 150 engagement points, new and larger hub body
Front hub female bolts and sealed bearings
Forward Joyride double wall rims
Shimano MT200
BOX Components combo seat
Vee Speedbooster tires

SPECS :

Bmx Inspyre Evo Disk Junior 2023

799,95 €

Bmx Inspyre Evo Disk Expert 2023

799,95 €

Bmx Inspyre Evo Disk Expert Xl 2023

799,95 €

Bmx Inspyre Evo Disk Pro 2023

799,95 €

Bmx Inspyre Evo Disk Pro Xl 2023

799,95 €

Bmx Inspyre Evo Disk Pro Xxl 2023

799,95 €

Bmx Inspyre Evo Disk Cruiser 2023

799,95 €

FRAME

Inspyre Evo Disk Junior - 18.75’' Premium Alu 6061-T6 - Hydroformed triple butted tubes - Swell Dropout Forged 3D

Inspyre Evo Disk Expert - 19.5’’ Premium Alu 6061-T6 - Hydroformed triple butted tubes - Swell Dropout Forged 3D

Inspyre Evo Disk Expert XL - 20’’ Premium Alu 6061-T6 - Hydroformed triple butted tubes - Swell Dropout Forged 3D

Inspyre Evo Disk - 20.75’’ Premium Alu 6061-T6 - Hydroformed triple butted tubes - Swell Dropout Forged 3D

Inspyre Evo Disk - 21,25’’ Premium Alu 6061-T6 - Hydroformed triple butted tubes - Swell Dropout Forged 3D

Inspyre Evo Disk - 21.85’’ Premium Alu 6061-T6 - Hydroformed triple butted tubes - Swell Dropout Forged 3D

CHAIN

KMC Z-1 - 1/2’’ x 3/32’’

SPROCKET

Aluminium 4 Bolts 38T - BCD 110mm

Aluminium 4 Bolts 40T - BCD 110mm

Aluminium 4 Bolts 41 T - BCD 110mm

Aluminium 4 Bolts 42T - BCD 110mm

Aluminium 4 Bolts 43T - BCD 110mm

Aluminium 4 Bolts 44T - BCD 110mm

Aluminium 4 Bolts 41T - BCD 110mm

SEAT CLAMP

Forward AM 25.4mm

Forward AM 31.8mm

DISC

Forward Joyride AM 140mm

BRAKE CALIPER

Shimano MT200

FORK

Pride Slik 2.0 Carbon Torray® T700S x Torray® T800S - 1-1/8’' Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' Steerer tube - 10mm

Pride Slik 2.0 Carbon Torray® T700S x Torray® T800S - 1-1/8’' | 1.5" Steerer tube - tapered legs - 10mm & Inspyre Bicycles CrMo - 1-1/8’' | 1.5" Steerer tube - 10mm

HANDLEBAR

Inspyre Evo - Aluminium 4.25’’ x 22’’ - BackSweep : 7° / UpSweep : 2°

Inspyre Evo - Aluminium 5.5’’ x 26’’ - BS : 7° / US : 2°

Inspyre Evo - 100% Crmo 6.5’’ x 26’’ - BS : 7° / US : 2°

Inspyre Evo - 100% Crmo 7.5’’ x 26.7’’ - BS : 7° / US : 1.5°

Inspyre Evo - 100% Crmo 8’’ x 28.5’’ - BS : 7° / US : 1.5°

Inspyre Evo - 100% Crmo 8'’ x 27.5’’ - BS : 7° / US : 1.5°

Inspyre Evo - 100% Crmo 5.5’’ x 27.5’’ - BS : 7° / US : 1.5°

FRONT RIM

Forward Joyride Aero - Aluminium 28H - Double walls

Forward Joyride - Aluminium 28H - Double walls

Forward Joyride Aero - Aluminium 36H - Double walls

REAR RIM

Forward Joyride Aero - Aluminium 28H - Double walls

Forward Joyride - Aluminium 28H - Double walls

Forward Joyride Aero - Aluminium 36H - Double walls

HEADSET

Semi Integrated - Sealed bearings - ZS44 | ZS44

Semi Integrated - Sealed bearings - IS42.2 | IS52.2

Tapered Integrated - Sealed bearings - IS42.2 | IS52.2

BRAKE LEVER

Shimano MT200

REAR HUB

Forward Joyride V2 Disc - Aluminium body - 28H - 10mm - 100% Sealed bearing - Cassette 150 points of contact - 6 pawls system - Female axle - ISO 6

Forward Joyride V2 Disc - Aluminium body - 36H - 10mm - 100% Sealed bearing - Cassette 150 points of contact - 6 pawls system - Female axle - ISO 6

Forward Joyride V2 Disc - Aluminium body - 36H - 10mm - 100% Sealed bearing - Cassette 150 points of contact - 6 pawls system - Visseries Female axle - ISO 6

FRONT HUB

Forward Joyride V2 - Aluminium body - 28H - 10mm - 100% sealed bearing - Female axle

Forward Joyride V2 - Aluminium body - 36H - 10mm - 100% sealed bearing - Female axle

PEDALS

Alu Mini 9/16

Alu 9/16

CRANKSET

Forward Joyride AM 2pcs - 4 Bolts - 150mm

Forward Joyride AM 2pcs - 4 Bolts - 160mm

Forward Joyride AM 2pcs - 4 Bolts - 170mm

Forward Joyride AM 2pcs - 4 Bolts - 150mm

Forward Joyride AM 2pcs - 4 Bolts - 175mm

Forward Joyride AM 2pcs - 4 Bolts - 180mm

Forward Joyride AM 2pcs - 4 Bolts -175mm

COG

16T Crmo

18T Crmo

TIRES

Vee Tire Speedbooster 20 x 1-3/8 (AV) Vee Tire Speedbooster 20 x 1-3/8 (AR)

Vee Tire Speedbooster 20 x 1.40 (AV). Vee Tire Speedbooster 20 x 1.40 (AR)

Vee Tire Speedbooster 20 x 1.75 (AV) Vee Tire Speedbooster 20 x 1.60 (AR)

Vee Tire Speedbooster 20 x 1.75 (AV) Vee Tire Speedbooster 20 x 1.75 (AR)

Vee Tire Speedbooster 24 x 1.75 (AV) Vee Tire Speedbooster 24 x 1.60 (AR)

GRIPS

Forward Lock On 95mm - Krayton

Forward Lock On 130mm - Kraton

STEM

Forward - Top Load - Aluminium 6061-T6 - 40mm

Forward - Top Load - Aluminium 6061-T6 - 50mm

SPOKES

Stainless 14G

SEAT

Combo 22.2mm

Combo 27.2mm

CHAIN TENSIONERS

Swell integrated

HEAD SPOKES

Laiton 14G

Brass 14G

Brass 14g

BOTTOM BRACKET

External BSA - EB24 sealed bearings

RIDING LEVEL

Confirmed

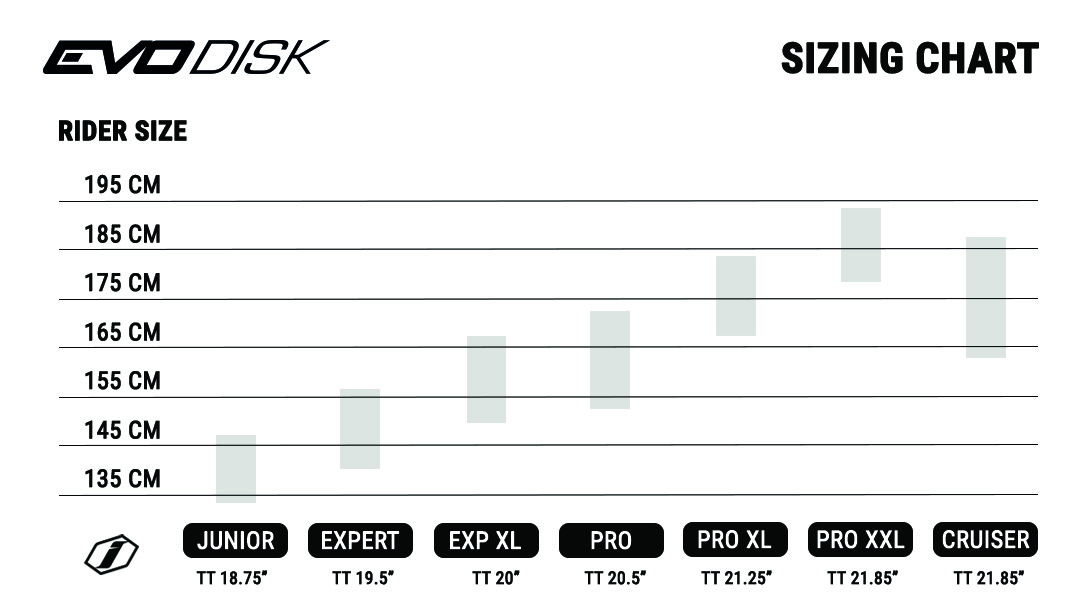

RIDER SIZE

1m35 to 1m45

1m40 to 1m55

1m50 to 1m65

1m55 to 1m70

1m70 to 1m80

>1m80

1m70 to 1m80

BIKE SIZE

Junior

Expert

Expert XL

Pro

Pro XL

Pro XXL

Cruiser Pro

Condition New product

ean13 3663205144695
