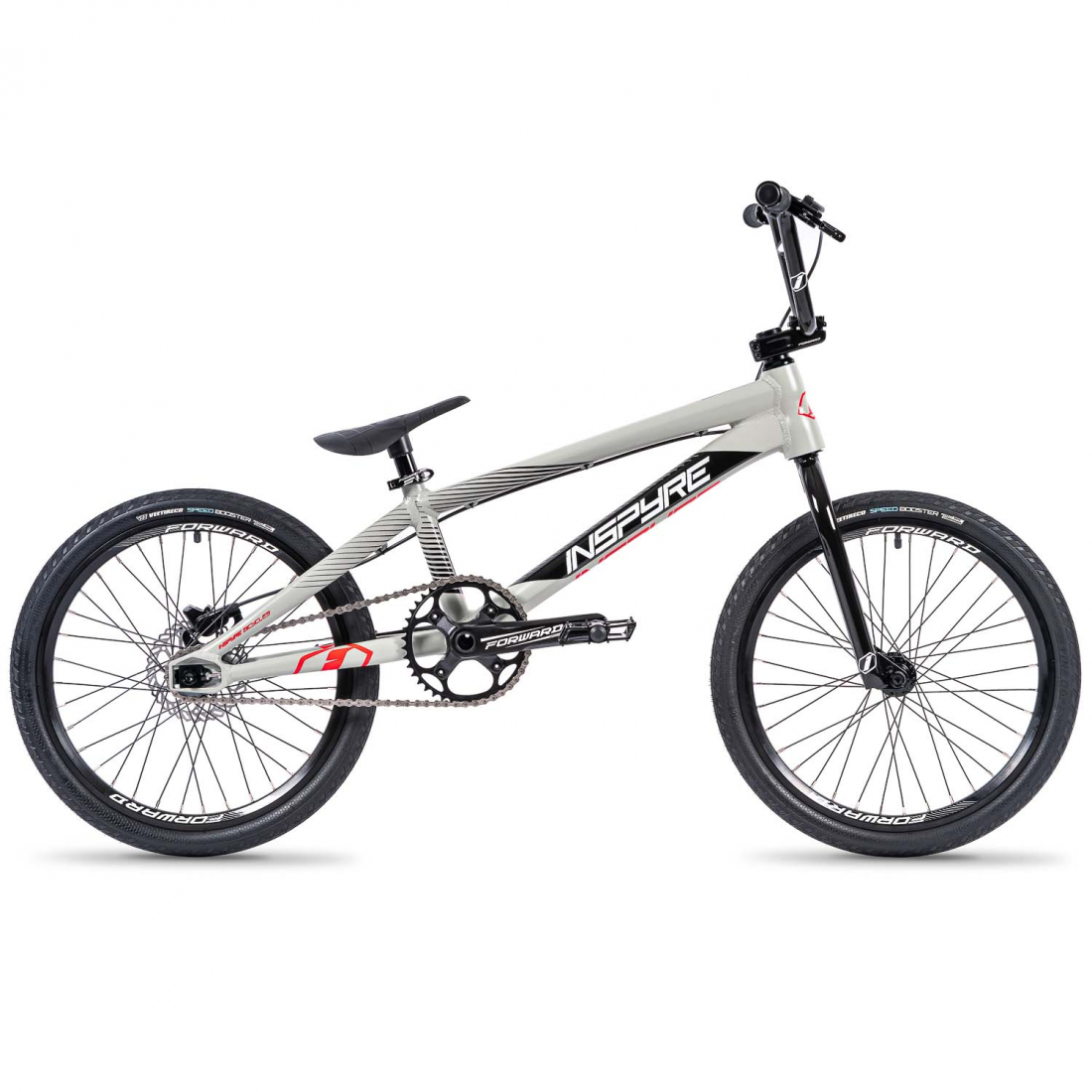

Bmx Inspyre Evo Disk Expert Xl 2022

The EVO Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features !

The braking system has been upgraded. The EVO Disk range is now equipped with a Forward brake, offering high-end braking.

The Forward rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

• 6061-T6 Aluminum frame - Hydroformed Tubes
• Closed SWELL dropouts with tensioners
• Tapered head tube from Expert XL
• Forward Joyride AM 2 pieces external BB crankset
• Forward hub 6 pawls 150 engagement points, new and larger hub body - ISO 6
• Front hub female bolts and sealed bearings
• Forward Joyride double wall rims
• SHIMANO MT200 Hydraulic disc brake
• Vee Speedbooster tires

SPECS:

• FRAME : Inspyre Evo Disk Expert XL - 20’’ Premium Alu 6061-T6 - Tubes hydroformed triple butted - Dopout Swell 3D forged
• COG : 16T - 1/2’’ x 3/32’’
• CHAIN : KMC Z-1 - 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 41 - 110mm
• GEAR : 41 x 16
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
  • BRAKE : SHIMANO MT200
• FORK : Inspyre Evo - 100% Chromoly - Steerer 1-1/8’' - Tapered legs
• BAR : Inspyre Evo - CrMo 6,5’’ x 26’’ - BS : 7° / US : 2°
• REAR RIM : Forward Joyride Aero - Aluminium 28H - Double walls
• FRONT RIM : Forward Joyride Aero - Aluminium 28H - Double walls
• HEADSET : Tapered Integrated - Sealed bearings - IS42.2 | IS52.2
• BRAKE LEVER : SHIMANO MT200
• REAR HUB : Forward Joyride Disc - Body aluminium Cassette 28H - 10mm - 100% ring bearings - 150 engagement points - 6 pawls - Female bolts - ISO 6 System
• FRONT HUB : Forward Joyride - Body aluminium 28H - 10mm - 100% ring bearings - Female bolts
• PEDALS : Alu 9/16
• CRANKSET : Forward Joyride AM 2 pieces - 4 Points - 170mm
• TIRES : Vee Tire® Speedbooster 20’’x1.40" (AV) / Vee Tire® Speedbooster 20’’x1.40" (AR)
• WEIGHT : 9.10 Kg
• GRIPS : Forward Lock On 130mm - Krayton
• STEM : Forward - Top Load - Aluminium 6061-T6 - 50mm
• SPOKES : Stainless 14G
• SEAT : Combo 27.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 20"
• BOTTOM BRACKET : External BSA - EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m50 - 1m65
