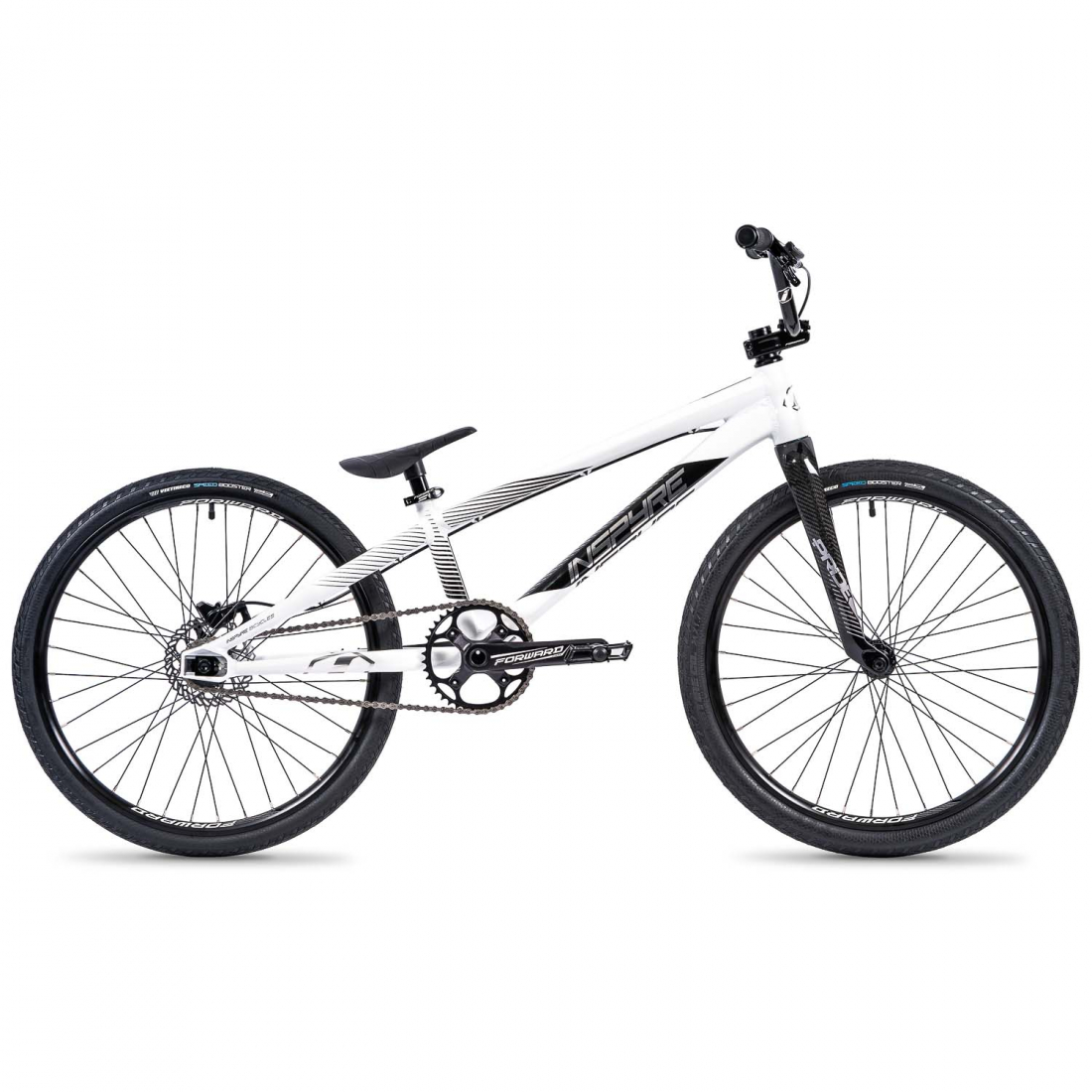

Bmx Inspyre Evo-C Disk Cruiser 2022

The EVO-C Disk, designed to be "Race Ready" right out of the box, is still evolving with 2 new features and sold with a carbon fork Pride Racing Slik 2.0 !

The braking system has been upgraded. The EVO-C Disk range is now equipped with a Forward brake, offering high-end braking.

The Forward rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

• 6061-T6 Aluminum frame - Hydroformed Tubes
• Closed SWELL dropouts with tensioners
• Tapered head tube from Expert XL
• Forward Joyride AM 2 pieces external BB crankset
• Forward hub 6 pawls 150 engagement points, new and larger hub body
• Front hub female bolts and sealed bearings
• Forward Joyride double wall rims
• Forward hydraulic disc brake 140mm
• BOX Components combo seat
• Vee Speedbooster tires

SPECS:

• FRAME : Inspyre Evo-C Disk Cruiser 24" - 21.85’’ Premium Alu 6061-T6 - Tubes hydroformed triple butted - Dopout Swell 3D forged
• COG : 16T - 1/2’’ x 3/32’’
• CHAIN : KMC® Z-610 - 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 41T - 110mm
• GEAR : 41 x 18
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
• BRAKE : Forward Hydraulic brakes
• FORK : Pride Slik 2.0 Carbone 24" Cruiser - Pivot 1-1/8’' . 1.5" Tapered and tapered legs
• BAR : Inspyre Evo - Aluminium 5.5’’ x 27.5’’ - BS : 7° / US : 1.5°
• REAR RIM : Forward Joyride Aero - Aluminium 36H - Double walls
• FRONT RIM : Forward Joyride Aero - Aluminium 36H - Double walls
• HEADSET : Tapered Integrated - Sealed bearings - IS42.2 | IS52.2
• BRAKE LEVER : Forward hydraulic
• REAR HUB : Forward Joyride Disc - Body aluminium Cassette 36H - 10mm - 100% ring bearings - 150 engagement points - 6 pawls - Female bolts
• FRONT HUB : Forward Joyride - Body aluminium 36H - 10mm - 100% ring bearings - Female bolts
• PEDALS : Alu 9/16
• CRANKSET : Forward Joyride AM 2 pieces - 4 Points - 175mm
• TIRES : Vee Tire® Speedbooster 24’’x1.75" (AV) / Vee Tire® Speedbooster 24’’x1.60" (AR)
• WEIGHT : --
• GRIPS : Forward Lock On 130mm - Krayton
• STEM : Forward - Top Load - Aluminium 6061-T6 - 50mm
• SPOKES : Stainless 14G
• SEAT : Combo Box Components Echelon 27.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 21.85"
• BOTTOM BRACKET : External - EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m70 < 1m85
