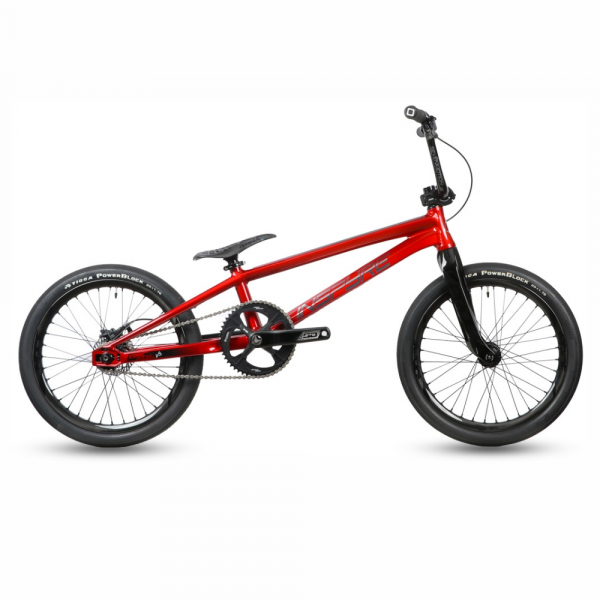

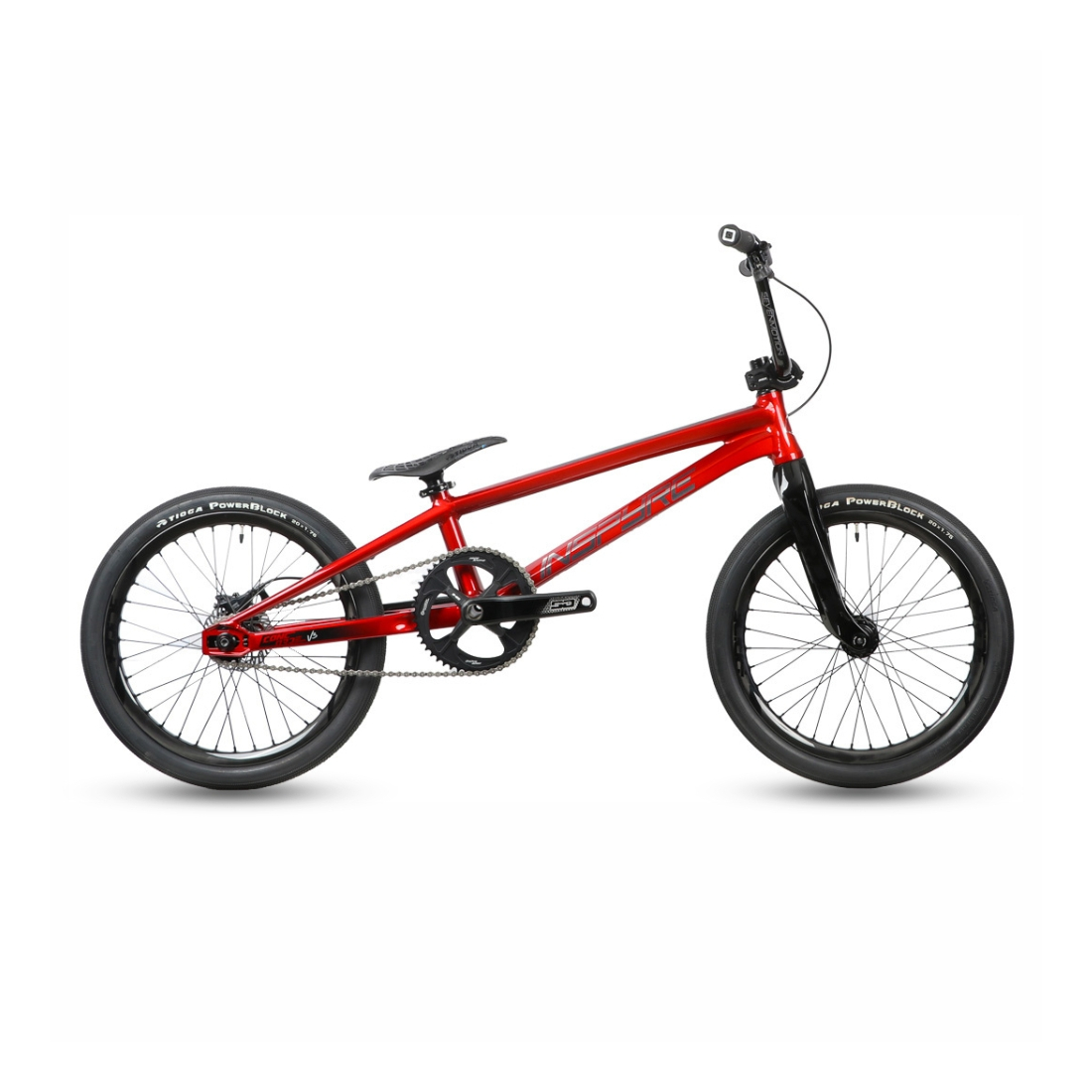

Inspyre Concorde v3 Bmx - Mustang Red - Pro 3xl

BMX INSPYRE CONCORDE V3 - MUSTANG RED - PRO 3XL

Custom BMX bikes are built with top-of-the-range parts to offer ultra-high performance.

Note: it is possible to modify parts, so please contact us on 04.78.44.55.76 or by e-mail at [email protected]

SPECIFICATIONS

• Frame: Inspyre Concorde V3 - Pro 3XL - 22.25"
• Fork: Pride Apex Tapered Carbon - 20mm
• Handlebar: Pride Sevenmotion V2 8" - Ø31.8mm
• Grips: Pride Cobra 129mm
• Stem: Pride FTL 35mm - Ø31.8mm
• Headset: Pride Ti45 Titanium Tapered 1-1/8" - 1.5"
• Brake Kit: Shimano SLX BR-M7100
• Brake Disc: SD Wave 120mm
• Rims: Pride Helium Aluminium - 20x1.75" - 36H
• Front Hub: Pride Control Pro V1 20mm - 36H
• Rear Hub: Pride Control Pro V1 10mm - 36H
• Tires: Tioga Fastr X - 20x1.75"
• Crankset: SD B-85 - 4 Pts - 180mm
• Bottom Bracket: Pride BB86 Interlock
• Chainring: Pride Hexagon - 4 Pts - 44T
• Cog: Pride Matrix AL - 16T
• Chain: Forward SX
• Saddle: Pride Control Pivotal
• Seatpost: Pride Spline AL - Ø31.6mm
• Seat Clamp: Stay Strong - Ø34.9mm

Weight : 8.62kg

FRAME GEOMETRY

• Top Tube: 22.25" / 565mm
• Rider Area: 596mm
• Down Tube: 566mm
• Rear Chainstay Length (Min): 15.3" / 389mm
• Rear Chainstay Length (Max): 16.3" / 414mm
• Head Tube Angle: 74°
• Seat Tube Angle: 72°
• BB Drop: 45.4mm
