Inspyre Concorde v3 Ads Tensioner - 15mm

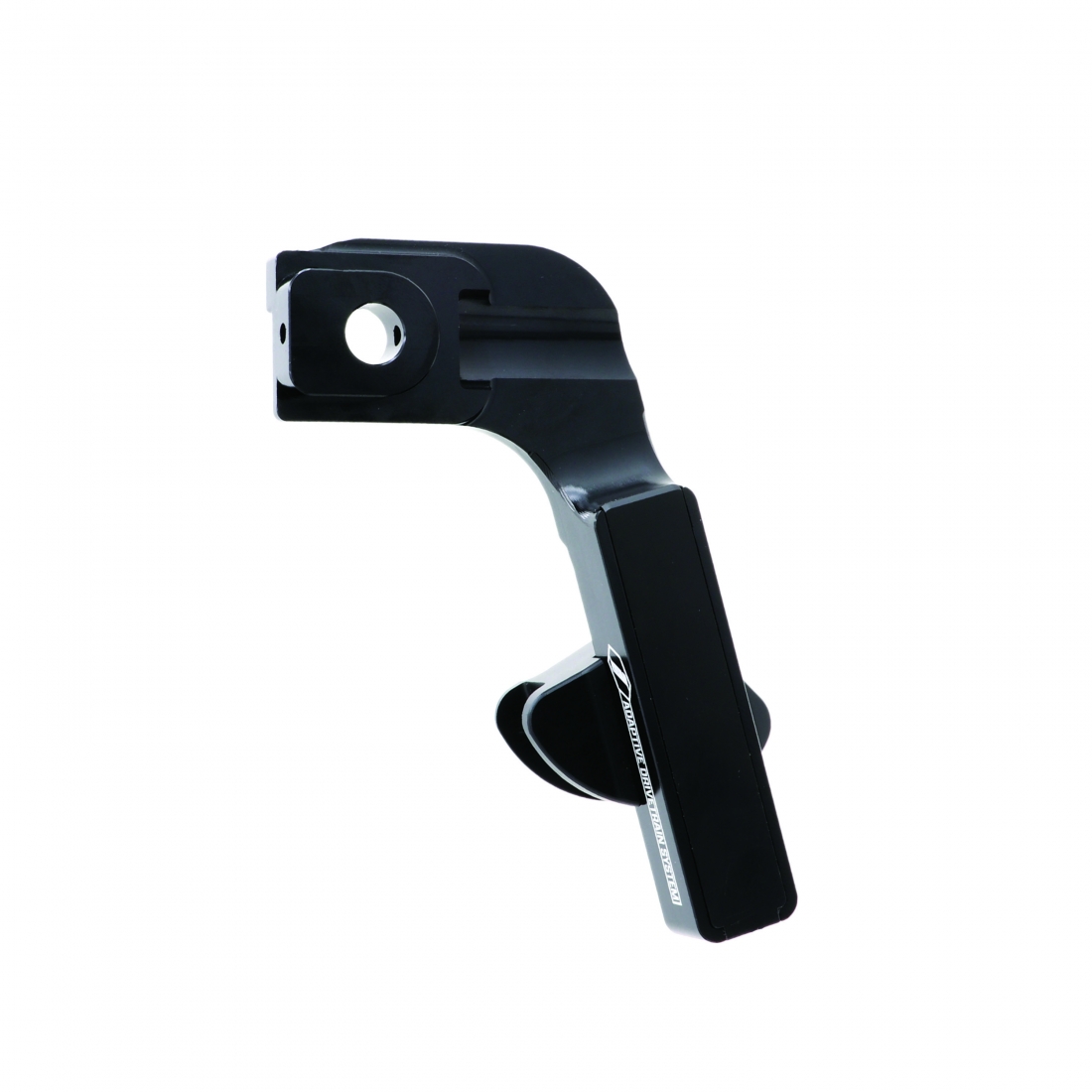

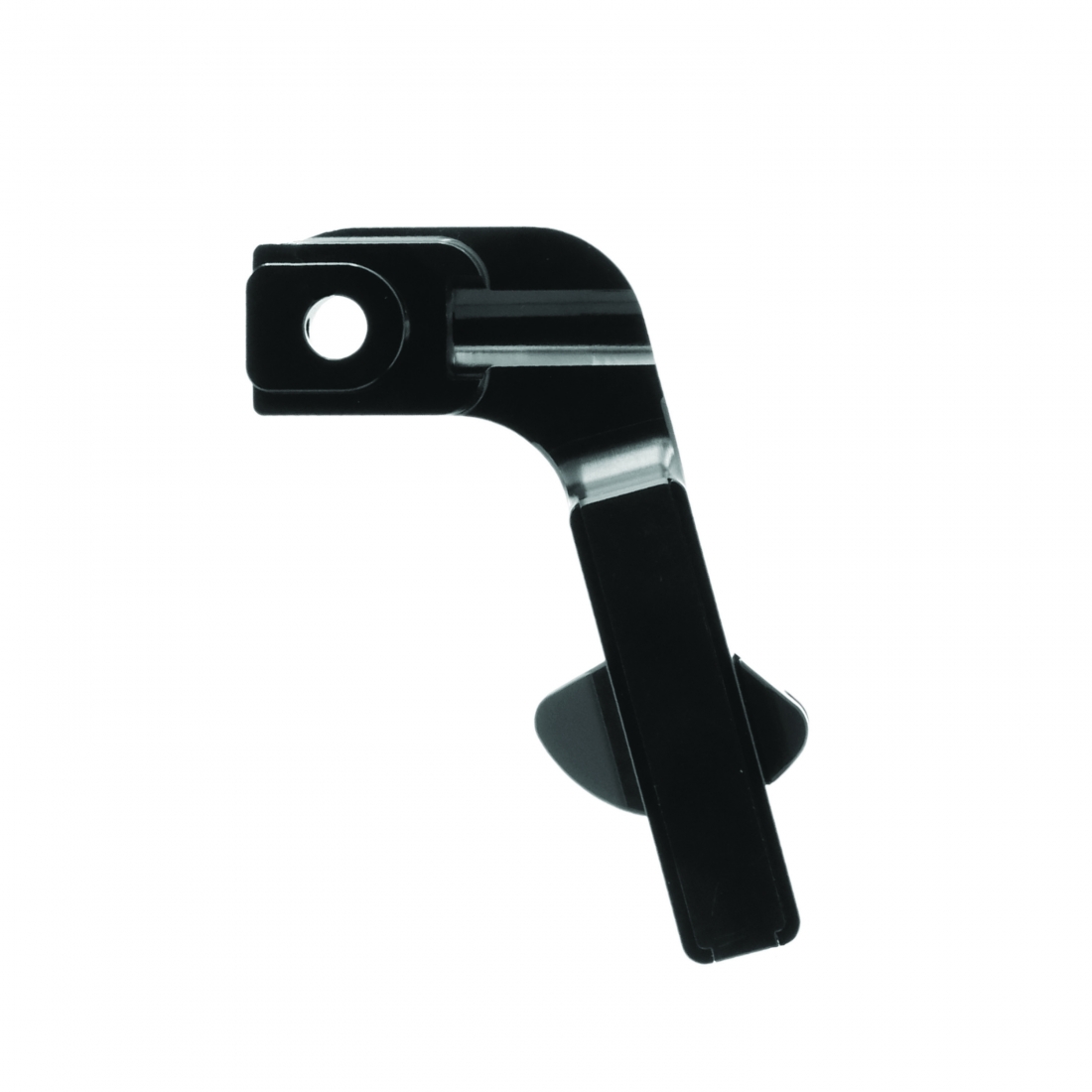

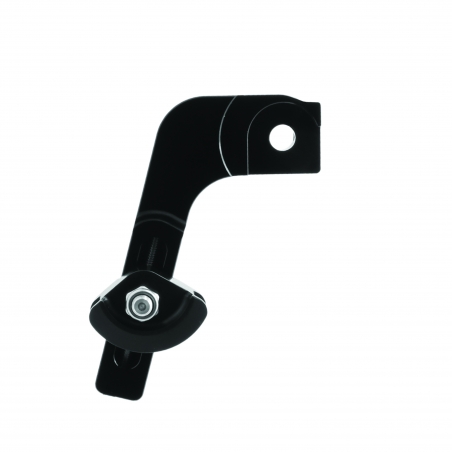

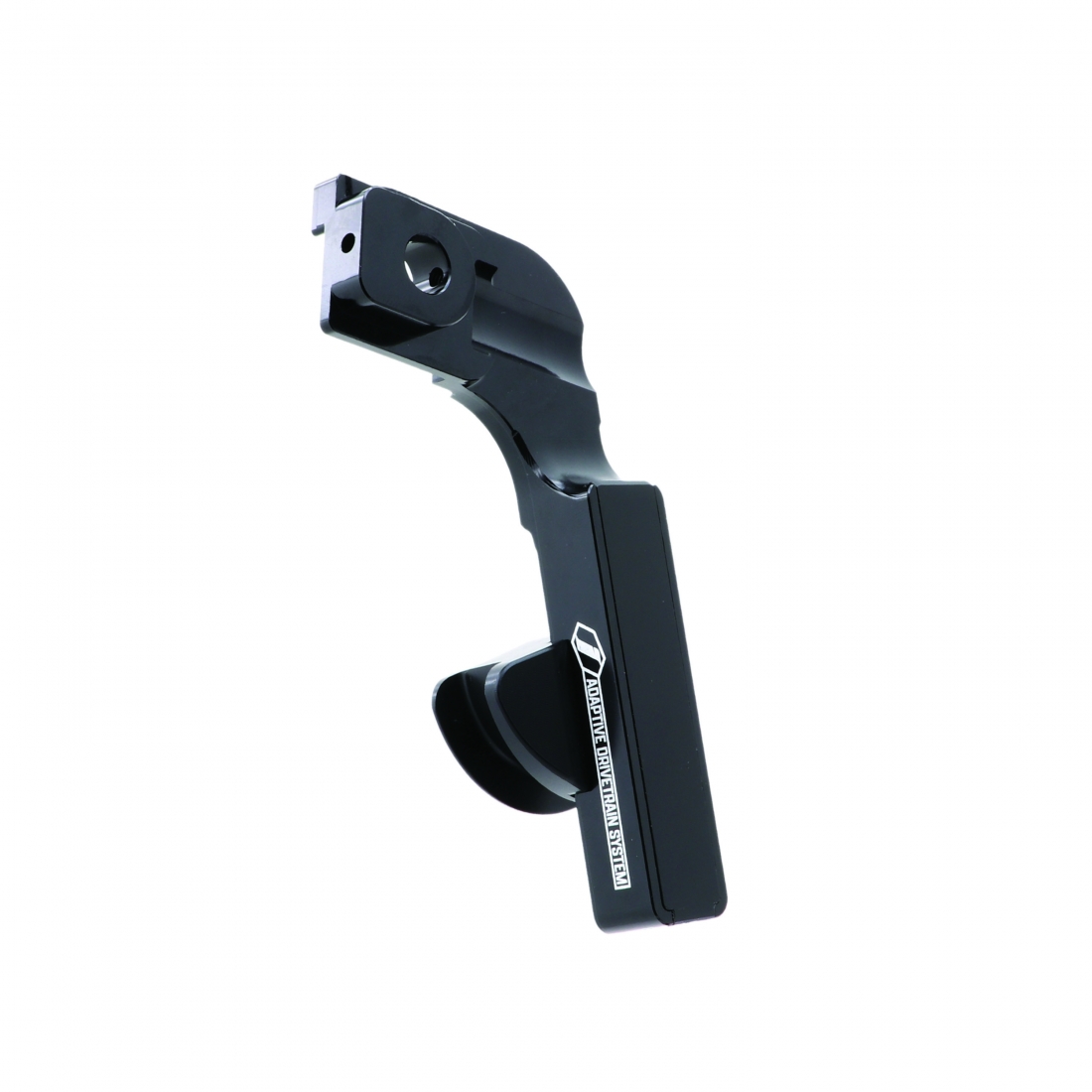

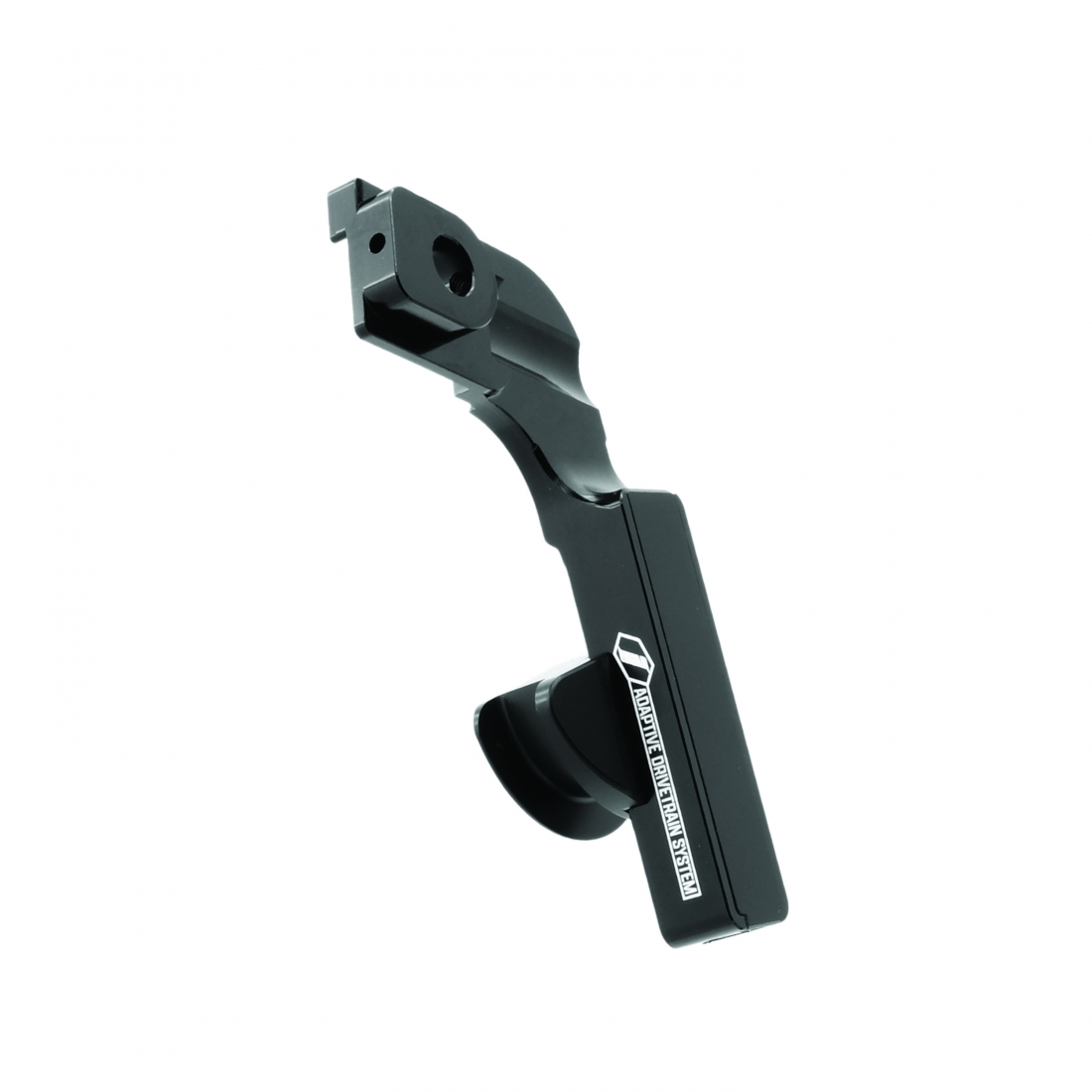

INSPYRE ADS CONCORDE V3 TENSIONER

The Inspyre ADS (Adaptive Drivetrain System) tensioner is specifically designed for INSPYRE Concorde V3 frames.

This tensioner allows for chain tension adjustment without altering the wheel position, thus maintaining the bike's wheelbase. With its wide adjustment range, it's ideal if you want to change gear ratios while keeping your rear chainstay lengths consistent, ensuring the same feel on your BMX. Conversely, it enables you to adjust the stability or responsiveness of your bike according to the track type by changing the wheel position, without the need to replace your chain.

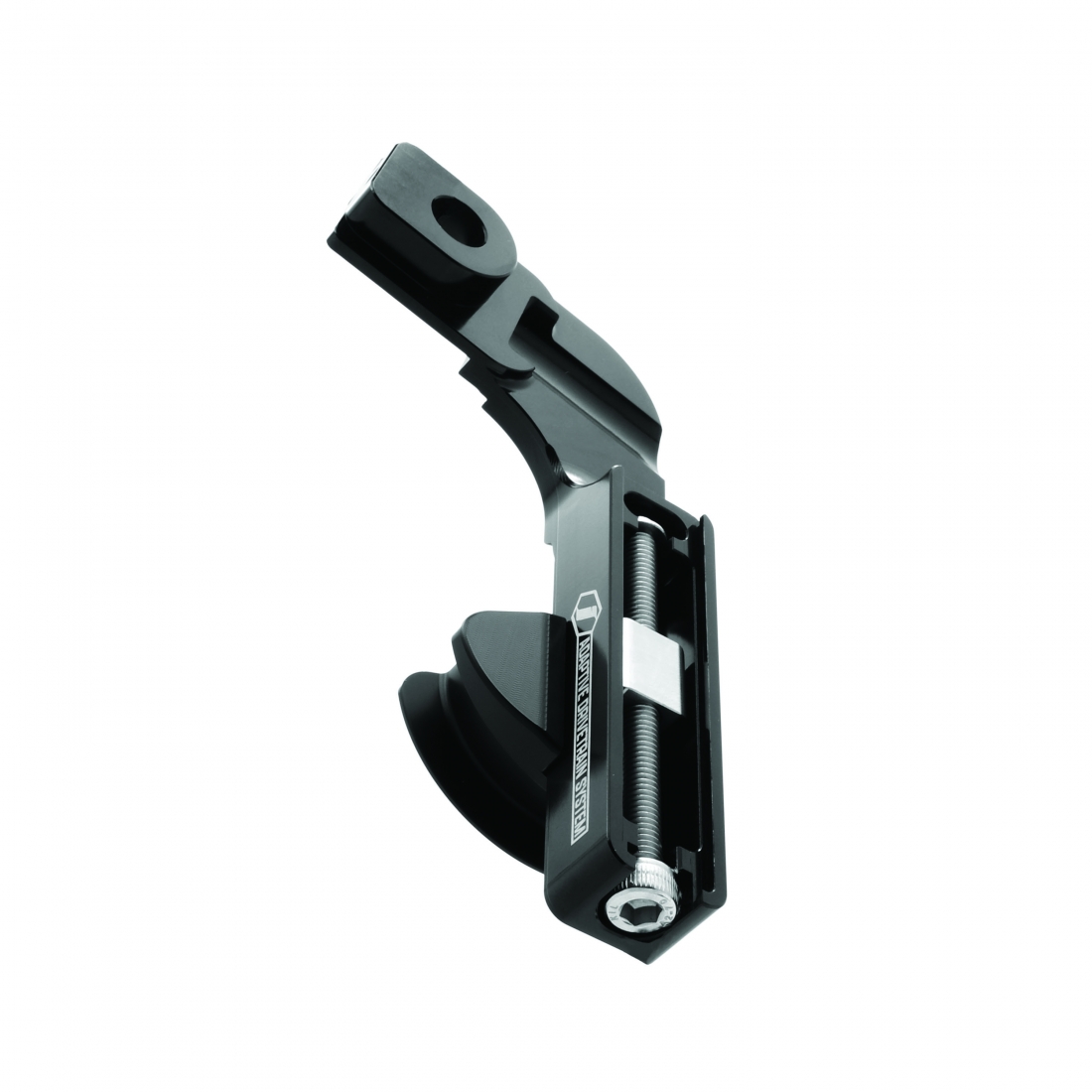

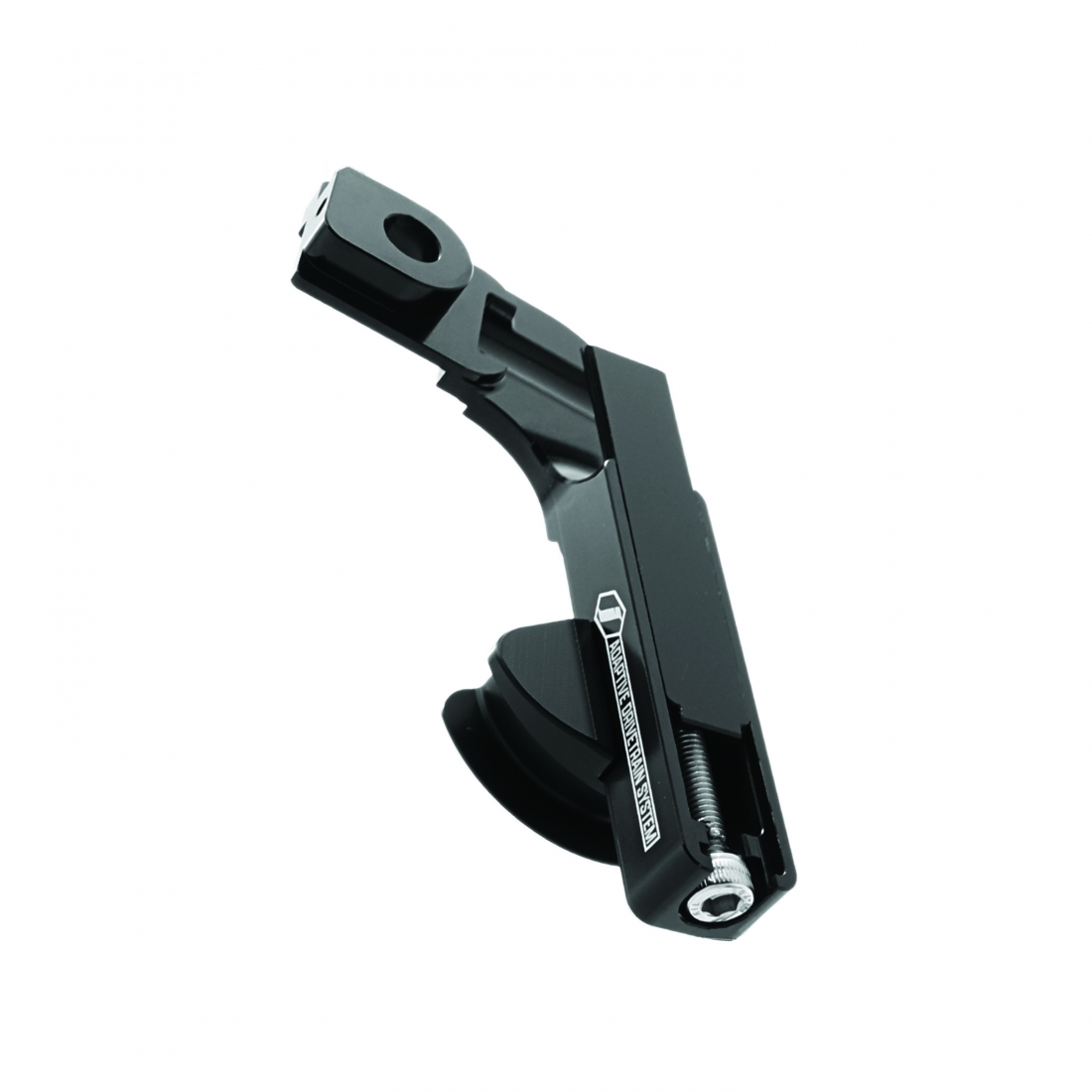

The ADS tensioner is CNC machined from 7075-T6 Aluminum and anodized for remarkable rigidity and a perfect finish. It features a chain guide pad to prevent derailment. It mounts in place of the right-side plate using a 2.5mm Allen key. To adjust the pad, tighten the M8x13mm nut without fully locking it and adjust the length screw using a 5mm Allen key. It also includes a removable plate for accessing the adjustment screw if necessary.

Note : The Inspyre ADS tensioner is not compatible with the Onyx Ultra SS hub.

SPECIFICATIONS :

• Compatibility : Concorde Inspyre V3 (only)
• Axle diameter : 15mm
• Tensioner material : Aluminum 7075-T6
• Pad material : Composite
• Weight : 124g
