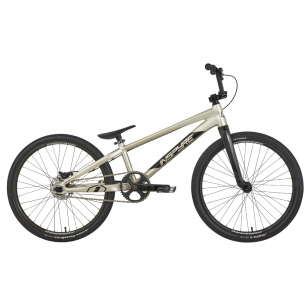

EVO-C DISK

Check out Bikes
Check out Bikes

"Race Ready" with no compromise

The Evo-C Disk has been designed to offer you the best riding experience possible.

Designed to provide maximum benefits to the rider for progression and improvement in competition.

This bike is intended for intermediate riders seeking more dynamism and performance.

It meets all the requirements of an experienced rider looking to improve and win their first races. The Evo-C Disk is aimed at riders always looking for more efficiency and performance.

Starts, manuals, jumps, lines... It will accompany you during your training sessions and become formidable in races.

Image alt
Image alt
Image alt
Image alt
Image alt
Image alt

Responsive and efficient on the track

The Evo Disk is designed around a premium 6061-T6 aluminum frame. It integrate our "Reactiv Geometry" technology. The triple-butted hydroformed tubes it features provide optimal power transfer while absorbing and filtering track vibrations. Its geometry allows it to be both stable and responsive.

The frame incorporates Swell rear dropouts. They ensure optimal chain tension and alignment while stiffening the rear of the frame. They also allow for the integration and perfect positioning of the disc brake caliper.

The Evo-C range is designed to adapt to the morphology of each rider. Depending on the bike size, each component is carefully chosen to offer riders the best possible riding experience.

Image alt
Image alt
Image alt
Image alt
Image alt
Image alt
Image alt
Image alt
Image alt

Reliables components

The Evo-C Disk is equipped with premium aftermarket components. By combining these various components, we achieve a dynamic and high-performance complete bike. Notably, it features the Pride Racing® Apex carbon fork (Junior/Expert) and the tapered SLIK 3.0 fork from the Expert XL size onwards.

You'll find a Shimano® MT410 hydraulic disc brake system, which provides powerful, reliable, and progressive braking.

The Forward® components on the bike have been tested and approved by our Inspyre Bicycles® riders. These include the Joyride 2-piece crankset and the Joyride v2 hubs, both with 100% sealed bearings. The rear hub incorporates a 6-pawl system with 150 points of engagement.

On smaller sizes, the Evo-C Disk is equipped with aluminum handlebars to optimize the bike's weight.

In this 2024 version, the Evo-C Disk comes with the renowned Tioga Fastr X tire at the front and the Powerblock at the back. Why this choice? We believe it's the best combination of low rolling resistance and grip. We have decided to adapt the tire pattern/model based on the front and rear for the best riding experience.

For 2024, we have made improvements to our headsets, and now the EVO-C is equipped with Pride Racing headsets.

KEY SPECS

EVO-C DISK FRAME
INSPYRE BICYCLES® Frame 6061-T6 Aluminum Premium Alloy Variable Thickness Hydroformed Tubes 3D Swell Rear Dropouts with Integrated Chain Tensioner High-Quality Paint with Chrome Undercoat Stickers
PRIDE RACING® CARBON FORK (NEW)
Equipped with the latest carbon forks from Pride Racing® - APEX and SLIK 3.0. The APEX incorporates the brand's latest innovations, featuring a 7075-T6 aluminum steerer tube and integrated stemlock. The SLIK 3.0 also boasts a new structure with a direct-molded steering cone in carbon, eliminating the need for a ring at the steerer tube.
SHIMANO HYDRAULIC DISC BRAKE (NEW)
SHIMANO® MT401/410 Disc Brake Kit for reliable and balanced braking - 140mm disc.
FORWARD JOYRIDE V2 WHEELSET
The Forward Joyride V2 wheels feature high-end hubs with sealed waterproof bearings and double-walled Aero Aluminum rims. The rear hub provides optimal engagement with its 6 pawls, offering 150 engagement points (approximately every 2.4 degrees). This allows for precise positioning at the start and almost instant engagement with each pedal stroke. All spare parts are available and sold separately.
TIOGA FAST X et POWERBLOCK TIRES (NEW)
Tioga Fast X tires at the front and Powerblock at the rear - For us, it's the best compromise between low resistance and grip. The most reliable tires on the market for incredible traction, no matter the conditions. No more excuses for not pushing your limits.
FORWARD JOYRIDE 2 PIECES CRANKSET
2-piece crankset with 6061-T6 Aluminum arms and a heat-treated 24mm CrMo hollow spindle.
PRIDE RACING HEADSETS (NEW)
New Pride Racing® headset with sealed bearings - Semi-integrated (ZS) or integrated (IS) depending on bike sizes.
HANDLEBARS
The EVO handlebars feature a modern geometry with a 7° backsweep, allowing you to engage your wrists at the start and have an engaged position.
SEAT COMBO
Ultra-lightweight one-piece seat and seatpost combo.
Image alt
Image alt
Image alt
Image alt
Image alt
Image alt
Image alt

SIZE COMPARASION :

Bmx Inspyre Evo-C Disk Junior
1199,95 €
Bmx Inspyre Evo-C Disk Expert
1199,95 €
Bmx Inspyre Evo-C Disk Expert Xl
1199,95 €
Bmx Inspyre Evo-C Disk Pro
1199,95 €
Bmx Inspyre Evo-C Disk Pro Xl
1199,95 €
Bmx Inspyre Evo-C Disk Pro Xxl
1199,95 €
Bmx Inspyre Evo-C Disk Cruiser
1199,95 €
FRAME Inspyre Evo-C Disk Junior - 18.75’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged Inspyre Evo-C Disk Expert - 19.5’’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged Inspyre Evo-C Disk Expert XL - 20’’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged Inspyre Evo-C Disk - 20.75’’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged butted - Pattes Swell Forgées 3D Inspyre Evo-C Disk - 21.25’’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged Inspyre Evo-C Disk - 21.85’’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged Inspyre Evo-C Disk - 21.85’’ Premium Alloy 6061-T6 - Triple butted hydroformed tubing- Swell dropouts 3D forged
CHAIN KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’ KMC Z-1 - 1/2’’ x 3/32’’
SPROCKET Aluminium 4 points 38T Aluminium 4 Points 40T Aluminium 4 Points 41T Aluminium 4 Points 42T Aluminium 4 Points 43T Aluminium 4 Points 44T Aluminium 4 Points 41T
SEATCLAMP Forward AM 25.4mm Forward AM 31.8mm Forward AM 31.8mm Forward AM 31.8mm Forward AM 31.8mm Forward AM 31.8mm Forward AM 31.8mm
ROTORS Forward Joyride AM 140mm Foward Joyride AM 140mm Foward Joyride AM 140mm Foward Joyride AM 140mm Foward Joyride AM 140mm Foward Joyride AM 140mm Foward Joyride AM 140mm
BRAKE LEVER SHIMANO MT401 SHIMANO MT401 SHIMANO MT401 SHIMANO MT401 SHIMANO MT401 SHIMANO MT401 SHIMANO MT401
FORK Pride Racing Apex Carbon - 1-1/8’' Aluminium Steerer- Stem lock Pride Racing Apex Carbon - 1-1/8’' Aluminium Steerer- Stem lock Pride Racing SLIK 3.0 Carbon - Tapered Steerer with crown race integrated Pride Racing SLIK 3.0 Carbon - Tapered Steerer with crown race integrated Pride Racing SLIK 3.0 Carbon - Tapered Steerer with crown race integrated Pride Racing SLIK 3.0 Carbon - Tapered Steerer with crown race integrated Pride Racing SLIK 3.0 Carbon - Tapered Steerer with crown race integrated
HANDLEBAR Inspyre Evo - Aluminium 4.25’’ x 22’’ - BackSweep : 7° / UpSweep : 2° Inspyre Evo - Aluminium 5.5’’ x 26’’ - BS : 7° / US : 2° Inspyre Evo - 100% Crmo 6.5’’ x 26’’ - BS : 7° / US : 2° Inspyre Evo - 100% Crmo 7.5’’ x 26.7’’ - BS : 7° / US : 1.5° Inspyre Evo - 100% Crmo 8’’ x 28.5’’ - BS : 7° / US : 1.5° Inspyre Evo - 100% Crmo 8'’ x 27.5’’ - BS : 7° / US : 1.5° Inspyre Evo - 100% Crmo 5.5’’ x 27.5’’ - BS : 7° / US : 1.5°
REAR RIM Forward Joyride Aero - Aluminium 28H - Double walls Forward Joyride - Aluminium 28H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls
FRONT RIM Forward Joyride Aero - Aluminium 28H - Double walls Forward Joyride - Aluminium 28H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls Forward Joyride Aero - Aluminium 36H - Double walls
HEADSET Pride Racing - Semi Integrated - Sealed bearings - ZS44 | ZS44 Pride Racing - Semi Integrated - Sealed bearings - ZS44 | ZS44 Pride Racing Tapered Integrated - Sealed Bearings - IS42 | IS52 Pride Racing Tapered Integrated - Sealed Bearings - IS42 | IS52 Pride Racing Tapered Integrated - Sealed Bearings - IS42 | IS52 Pride Racing Tapered Integrated - Sealed Bearings - IS42 | IS52 Pride Racing Tapered Integrated - Sealed Bearings - IS42 | IS52
BRAKE CALIPER SHIMANO MT410 SHIMANO MT410 SHIMANO MT410 SHIMANO MT410 SHIMANO MT410 SHIMANO MT410 SHIMANO MT410
REAR HUB Forward Joyride V2 Disc - Aluminium Shell - Cassette 28H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6 Forward Joyride V2 Disc - Aluminium Shell - Cassette 28H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6 Forward Joyride V2 Disc - Aluminium Shell - Cassette 36H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6 Forward Joyride V2 Disc - Aluminium Shell - Cassette 36H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6 Forward Joyride V2 Disc - Aluminium Shell - Cassette 36H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6 Forward Joyride V2 Disc - Aluminium Shell - Cassette 36H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6 Forward Joyride V2 Disc - Aluminium Shell - Cassette 36H - 10mm - 100% Sealed Bearings - 150 points of engagements - 6 pawls system - Female bolts - ISO 6
FRONT HUB Forward Joyride V2 - Aluminium shell 28H - 10mm - 100% Sealed bearings - Female bolts Forward Joyride V2 - Aluminium shell 28H - 10mm - 100% Sealed bearings - Female bolts Forward Joyride V2 - Aluminium shell 36H - 10mm - 100% Sealed bearings - Female bolts Forward Joyride V2 - Aluminium shell 36H - 10mm - 100% Sealed bearings - Female bolts Forward Joyride V2 - Aluminium shell 36H - 10mm - 100% Sealed bearings - Female bolts Forward Joyride V2 - Aluminium shell 36H - 10mm - 100% Sealed bearings - Female bolts Forward Joyride V2 - Aluminium shell 36H - 10mm - 100% Sealed bearings - Female bolts
PEDALS Alu Mini 9/16 Alu 9/16 Alu 9/16 Alu 9/16 Alu 9/16 Alu 9/16 Alu 9/16
CRANKSET Forward Joyride AM 2pcs - 4 Points - 150mm Forward Joyride AM 2pcs - 4 Points - 160mm Forward Joyride AM 2pcs - 4 Points - 170mm Forward Joyride AM 2pcs - 4 Points - 175mm Forward Joyride AM 2pcs - 4 Points - 175mm Forward Joyride AM 2pcs - 4 Points - 180mm Forward Joyride AM 2pcs - 4 Points - 175mm
COG 16T Crmo 16T Crmo 16T Crmo 16T Crmo 16T Crmo 16T Crmo 18T Crmo
TIRES Tioga Fastr X 20 x 1-3/8 (FRONT) Tioga Powerblock 20 x 1-3/8 (REAR) Tioga Fastr X 20 x 1-3/8 (FRONT) Tioga Powerblock 20 x 1-3/8 (REAR) Tioga Powerblock 20 x 1.40 (FRONT). Tioga Powerblock 20 x 1.40 (REAR) Tioga Fastr X 20 x 1.75 (FRONT) Tioga Powerblock 20 x 1.60 (REAR) Tioga Fastr X 20 x 1.75 (FRONT) Tioga Powerblock 20 x 1.75 (REAR) Tioga Fastr X 20 x 1.75 (FRONT) Tioga Powerblock 20 x 1.75 (REAR) Tioga Fastr X 24 x 1.75 (FRONT) Tioga Powerblock 24 x 1.60 (REAR)
GRIPS Forward Lock On 95mm - Krayton Forward Lock On 130mm - Kraton Forward Lock On 130mm - Kraton Forward Lock On 130mm - Kraton Forward Lock On 130mm - Kraton Forward Lock On 130mm - Kraton Forward Lock On 130mm - Kraton
STEM Forward - Top Load - Aluminium 6061-T6 - 40mm Forward - Top Load - Aluminium 6061-T6 - 40mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm Forward - Top Load - Aluminium 6061-T6 - 50mm
SPOKES Stainless 14G Stainless 14G Stainless 14G Stainless 14G Stainless 14G Stainless 14G Stainless 14G
SEAT Combo 22.2mm Combo Nylon 27.2mm Combo Nylon 27.2mm Combo Nylon 27.2mm Combo Nylon 27.2mm Combo Nylon 27.2mm Combo Nylon 27.2mm
CHAINTENSIONERS Swell Integrated Swell Integrated Swell Integrated Swell Integrated Swell Integrated Swell Integrated Swell Integrated
NIPPLES Brass 14G Brass 14G Brass 14G Brass 14G Brass 14G Brass 14G Brass 14g
BOTTOM BRACKET BSA External BB - Sealed bearing EB24 BSA External BB - Sealed bearing EB24 BSA External BB - Sealed bearing EB24 BSA External BB - Sealed bearing EB24 BSA External BB - Sealed bearing EB24 BSA External BB - Sealed bearing EB24 BSA External BB - Sealed bearing EB24
LEVEL Expert Expert Expert Expert Expert Expert Expert
RIDER SIZE 1m35 à 1m45 1m40 à 1m55 1m50 à 1m65 1m60 à 1m70 1m70 à 1m80 1m80 > 1m70 >
BIKE SIZE Junior Expert Expert XL Pro Pro XL Pro XXL Cruiser Pro

EVO-C GEOMETRY

SIZE RIDER AREA TOP TUBE CHAINSTAYS LENGTH (MIN) CHAINSTAYS LENGTH (MAX) HEAD ANGLE SEAT TUBE ANGLE BB HEIGHT
A B C D E F
mm Inches mm Inches mm Inches mm Degrees Degrees Inches
JUNIOR 520 18,75 477 12,68 322 13,66 347 72° 70° 11’’
EXPERT 539 19,5 495,3 12,68 322 13,66 347 72° 71° 11’’
EXPERT XL 547 20 508 13,5 343 14,49 368 73° 71° 11.5’’
PRO 564 20,8 529 14,06 357 15,04 382 74° 71° 11.5’’
PRO XL 574 21,25 540 14,72 374 15,71 399 74° 71° 11.5’’
PRO XXL 586 21,9 557 14,72 374 15,71 399 74° 71° 11.5’’
CRUISER 619 21,85 555 15,55 395 16,54 420 73° 71° 12’’

TECH SPECS EVO-C

SIZE SEATUBE
DIAMETER		 SEAT CLAMP
DIAMETER		 BOTTOM BRACKET
TYPE		 HEADSET
STYLE		 SHIS SPROCKET SIZE
(MAX)		 TIRE SIZE
(MAX)		 CRANKS LENGTH
(MAX)
JUNIOR 22,2mm 25,4mm Euro BSA - 1.375’’ BC 24T - 68MM Semi Integrated 1’’-1/8 - 102mm ZS44 | ZS44 42T 20 x 1-3/8 170 mm
EXPERT 27,2mm 31,8mm 175 mm
EXPERT XL Integrated Tapered - 120mm IS42 | IS52 43T 20 x 1.60
PRO 47T 20 x 1.75 180 mm
PRO XL
PRO XXL
CRUISER 43T 24 x 1.75

EVO-C DISK SIZE GUIDE

RIDER SIZE BIKE SIZE
1m35 - 1m45 JUNIOR
1m40 - 1m55 EXPERT
1m50 - 1m65 EXPERT XL
1m60 - 1m70 PRO
1m70 - 1m80 PRO XL
1m80 > PRO XXL
1m70 > CRUISER

Measurements given for reference. Each rider will adjust this chart according to their riding style and morphology as they see fit..
