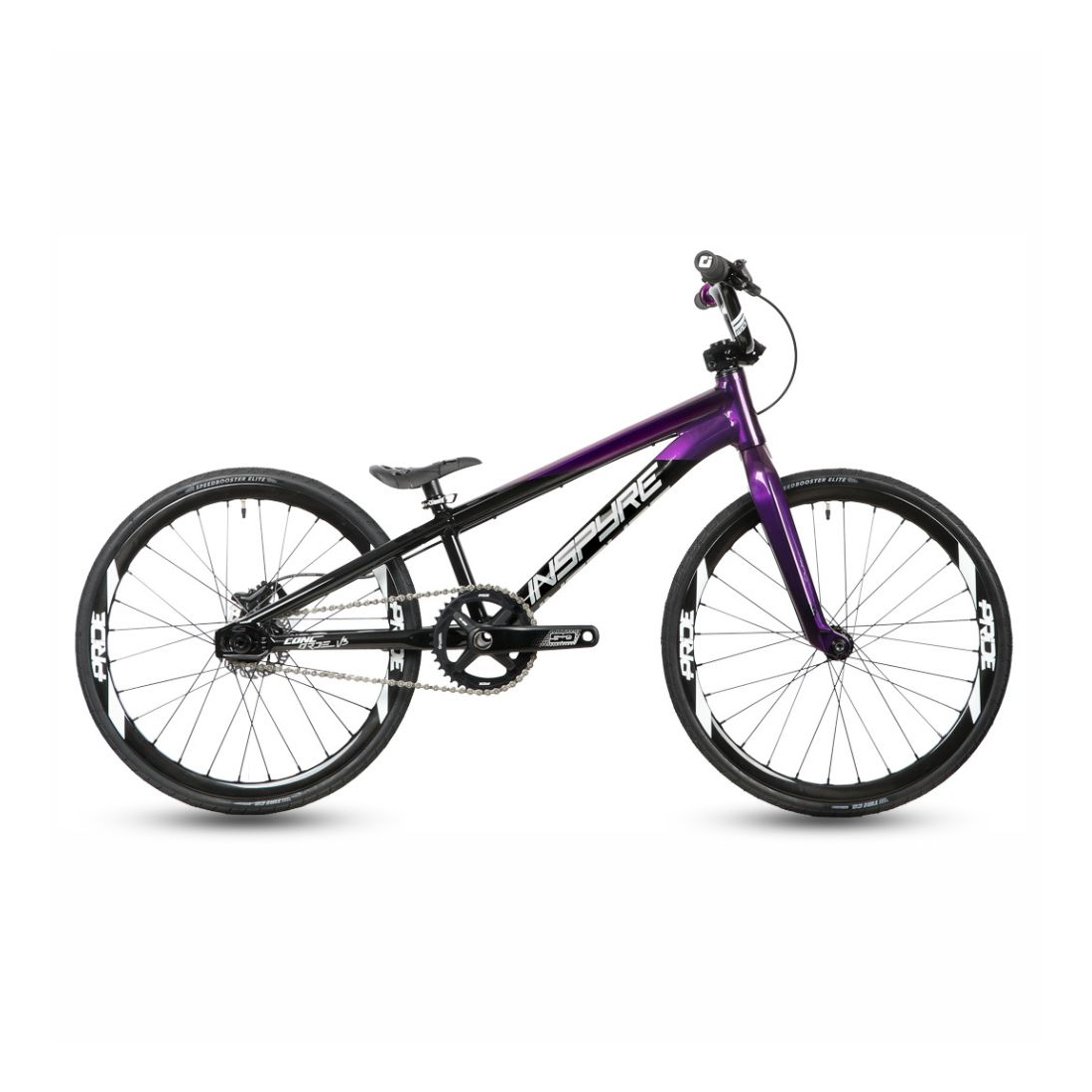

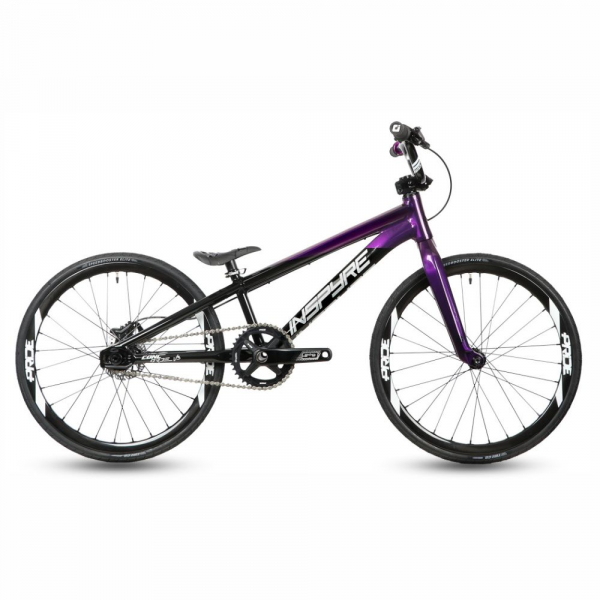

Inspyre Concorde v3 Bmx Junior - Purple/Black

BMX INSPYRE CONCORDE V3

Custom BMX bikes are built with high-quality components to deliver an ultra-performance bike.

SPECIFICATIONS

• Frame: Inspyre Concorde V3 - Junior
• Fork: Pride Apex Carbon - 10mm
• Handlebars: Forward Junior Alu - 4.25" - Ø22.2mm
• Grips: Odi Ruffian V2.1 x Meybo - 110mm
• Stem: Pride Cayman FTL 35mm - Ø22.2mm
• Headset: Forward Gen Integrated
• Brake Kit: Shimano MT-501
• Brake Disc: SD Grimeca - 120mm
• Rims: Wave CFR Carbon Expert
• Front Hub: Pride Control V2 - 10mm
• Rear Hubs: Pride Control V2 - 15mm with 10mm reducer
• Tires: Vee Tire Speedbooster 20x1-1/8"
• Bottom Bracket: Pride EB24 Stainless
• Crankset: SD B-85 4 bolts - 150mm
• Chainring: Pride Hexagon 38T
• Cog: Pride Matrix Crmo - 16T
• Chain: Forward SX
• Saddle: Combo Inspyre - Ø22.2mm
• Seat Clamp: Forward Elite - 25.4mm

• Weight : 6.62kg

GEOMETRY - FRAME

• Top Tube: 18.45" / 469mm
• Rider Area: 526mm
• Rear Chainstay Length (min): 13.3" / 337mm
• Rear Chainstay Length (max): 14.3" / 362mm
• Head Angle: 73°
• Seat Tube Angle: 70°
• Bottom Bracket Height: 3.7mm
